Battery care
Choose a battery maintainer from the battery, not the plug.
Confirm voltage, chemistry, capacity, connection, storage temperature, and the charger's supported modes before use.
Direct answer
Choose a maintainer by battery voltage, chemistry, capacity, and storage temperature. The verified OptiMate TM523-8 supports 12 V AGM and gel batteries at 6.67 A, but every other model must be checked against its own record.
Before the hardware
Collect these four inputs.
- 01Battery voltage
- 02Chemistry
- 03Capacity
- 04Storage temperature
Decision table
Verified chooser entry
| Model | Battery voltage | Chemistry | Charge current | Use |
|---|---|---|---|---|
| TM523-8 | 12 V | AGM or gel | 6.67 A | Long-term maintenance supported |
Do not infer the same modes or current for another TM522 or TM523 variant.
What makes it work
Three choices that need to be checked together.

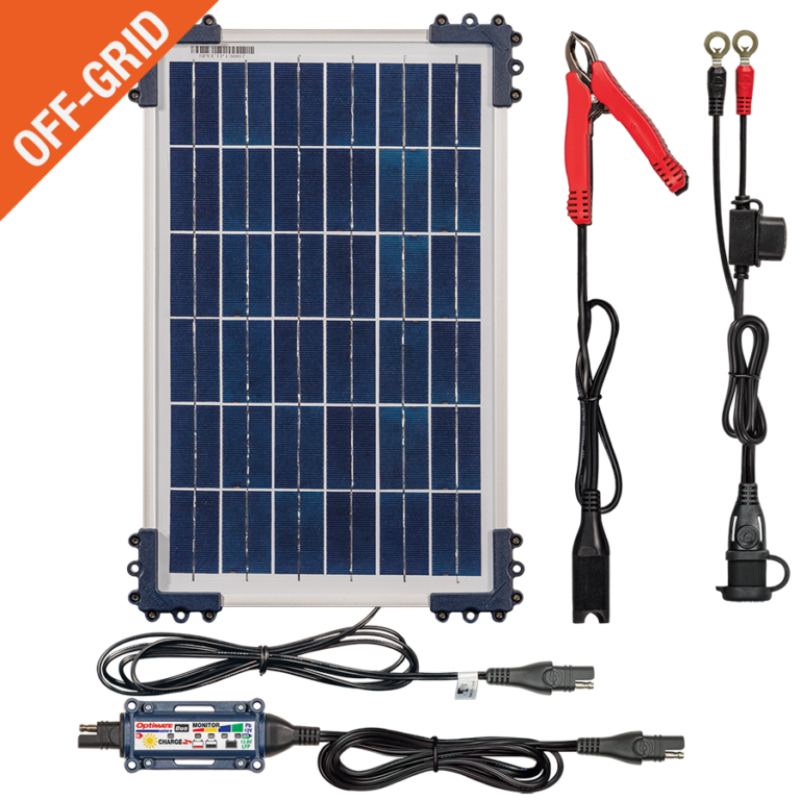

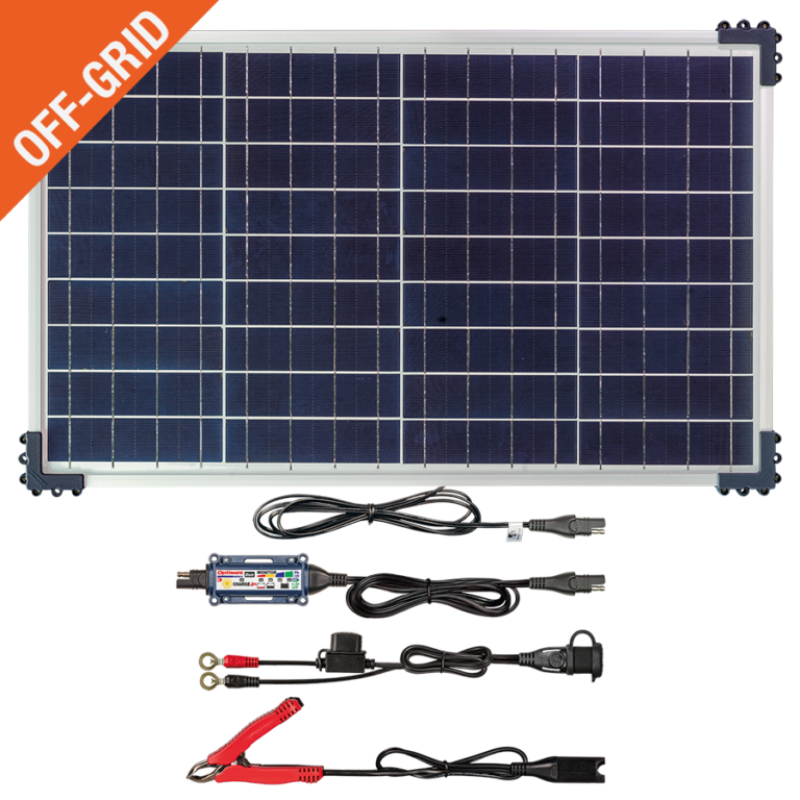

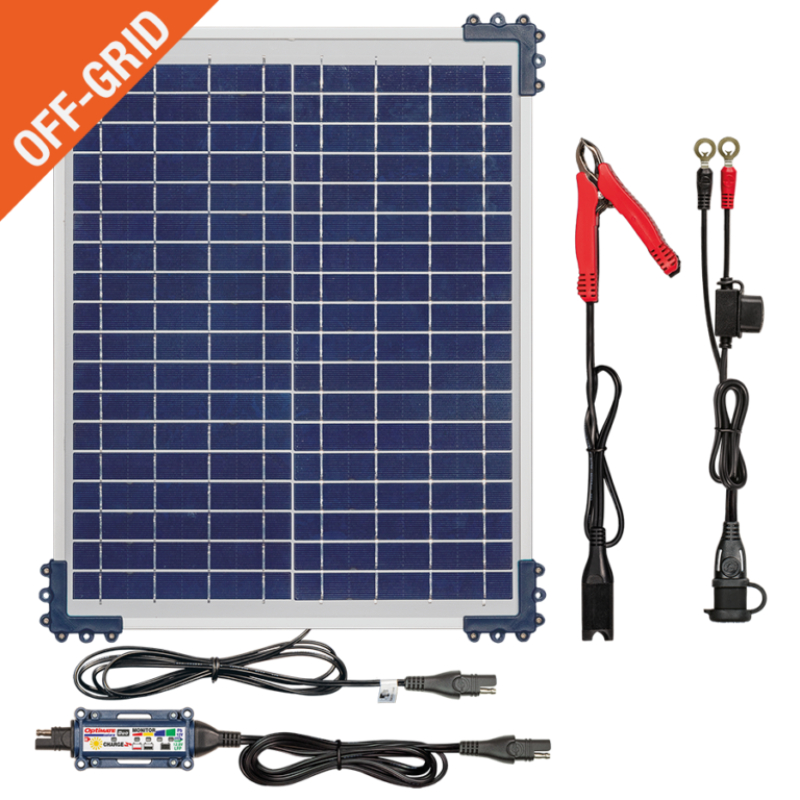

Solar maintainers
Match the controller mode and panel output to the stored battery.
View the categoryAC maintainers
Confirm voltage and supported chemistry before permanent connection.
View the categoryBattery connections
Use the fused lead and terminal type specified for the battery and charger.
View the categoryHelp around the hardware
A product record does not replace a system review.
Free sizing review
A load worksheet review with the assumptions, missing inputs, and a hardware direction.
See all servicesCustom battery bank assembly
Series or parallel configuration with cables cut, crimped, and labelled after compatibility review.
See all servicesKeep checking
The method and terms used here.
Read the sizing method
See the assumptions, suppression rules, and evidence standard used here.
Read the guideCheck the energy glossary
Confirm the meaning of capacity, energy, current, and autonomy.
Read the guideHonest limits
Know before you buy
- A maintainer does not restore a damaged, frozen, or failed battery.
- Confirm voltage, chemistry, capacity range, connection, and storage temperature from the model record.
- Only the TM523-8 values shown here have been verified for this page.
Common questions
Short answers, limits included.
Can I leave a maintainer connected all winter?
Only when the exact model supports long-term maintenance for that battery chemistry and the installation stays dry and protected.
Is a trickle charger the same as a smart maintainer?
No. A smart maintainer controls charge stages. A simple trickle charger may not manage long storage safely.
Can I use a 12 V maintainer on a 24 V bank?
Not across the full bank. Use equipment designed for the bank or follow an approved per-battery procedure.
Will a maintainer recover a dead battery?
Not necessarily. A failed, frozen, shorted, or deeply damaged battery needs testing and may require replacement.
